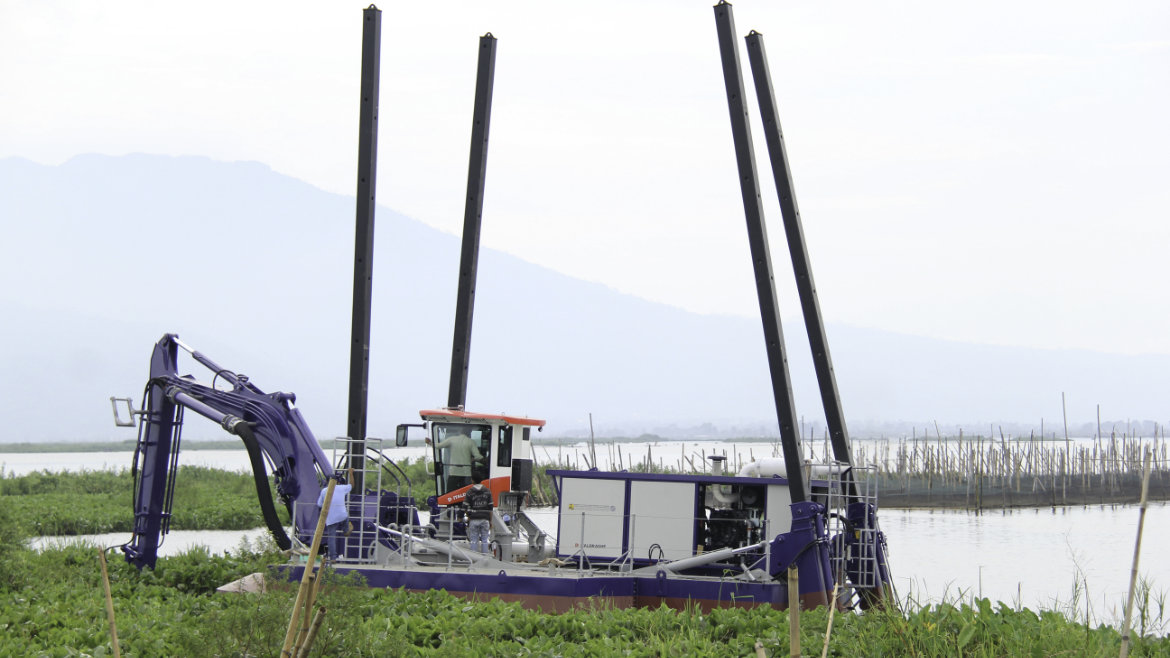

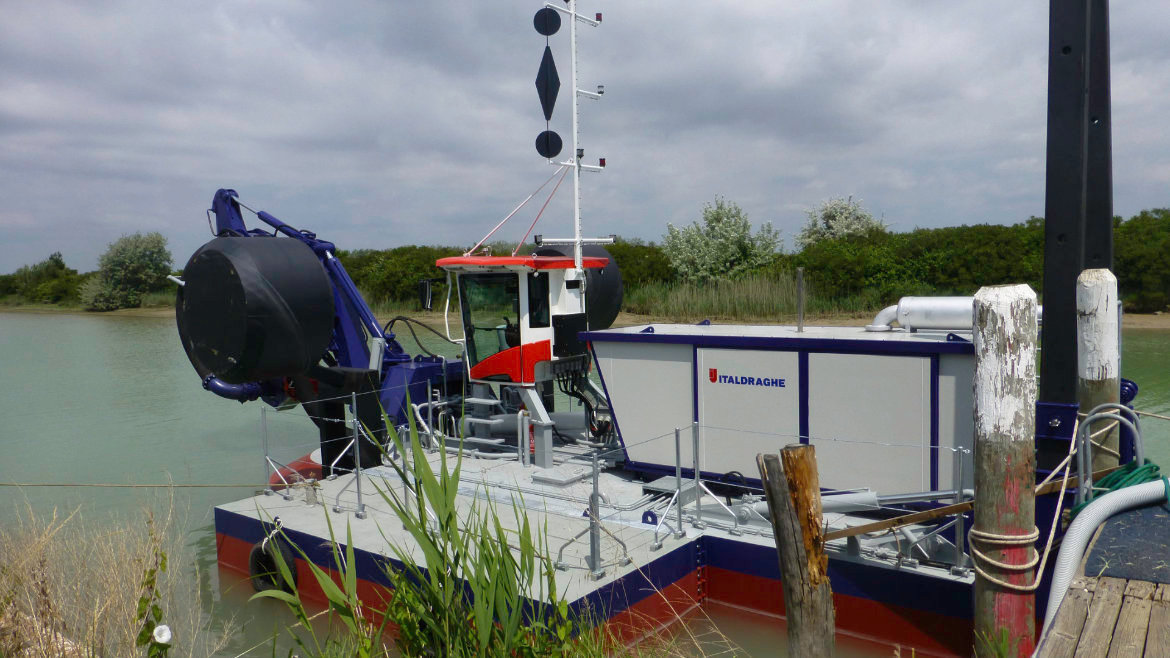

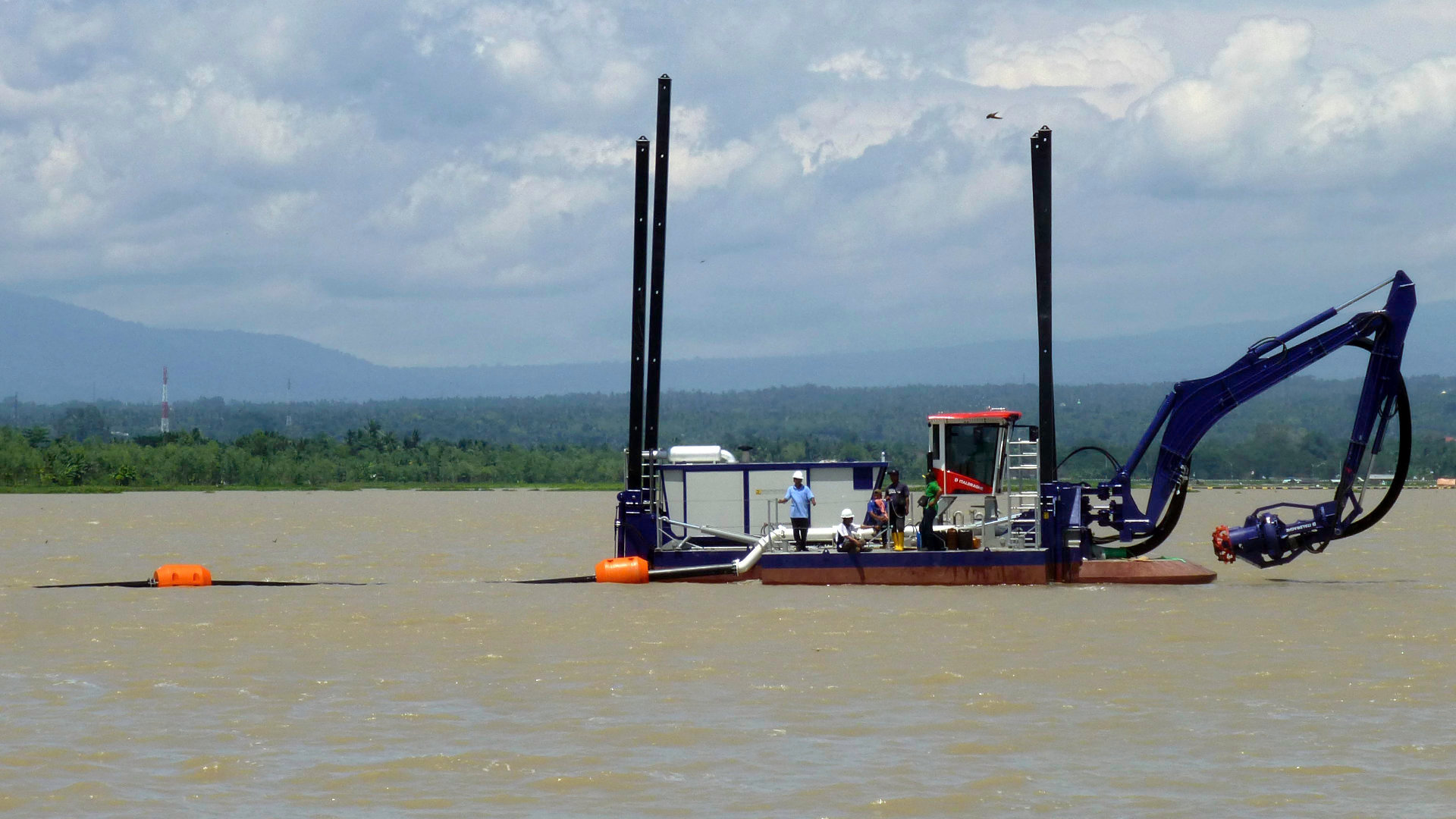

MULTIFUNCTIONAL DREDGER – OCTOPUS

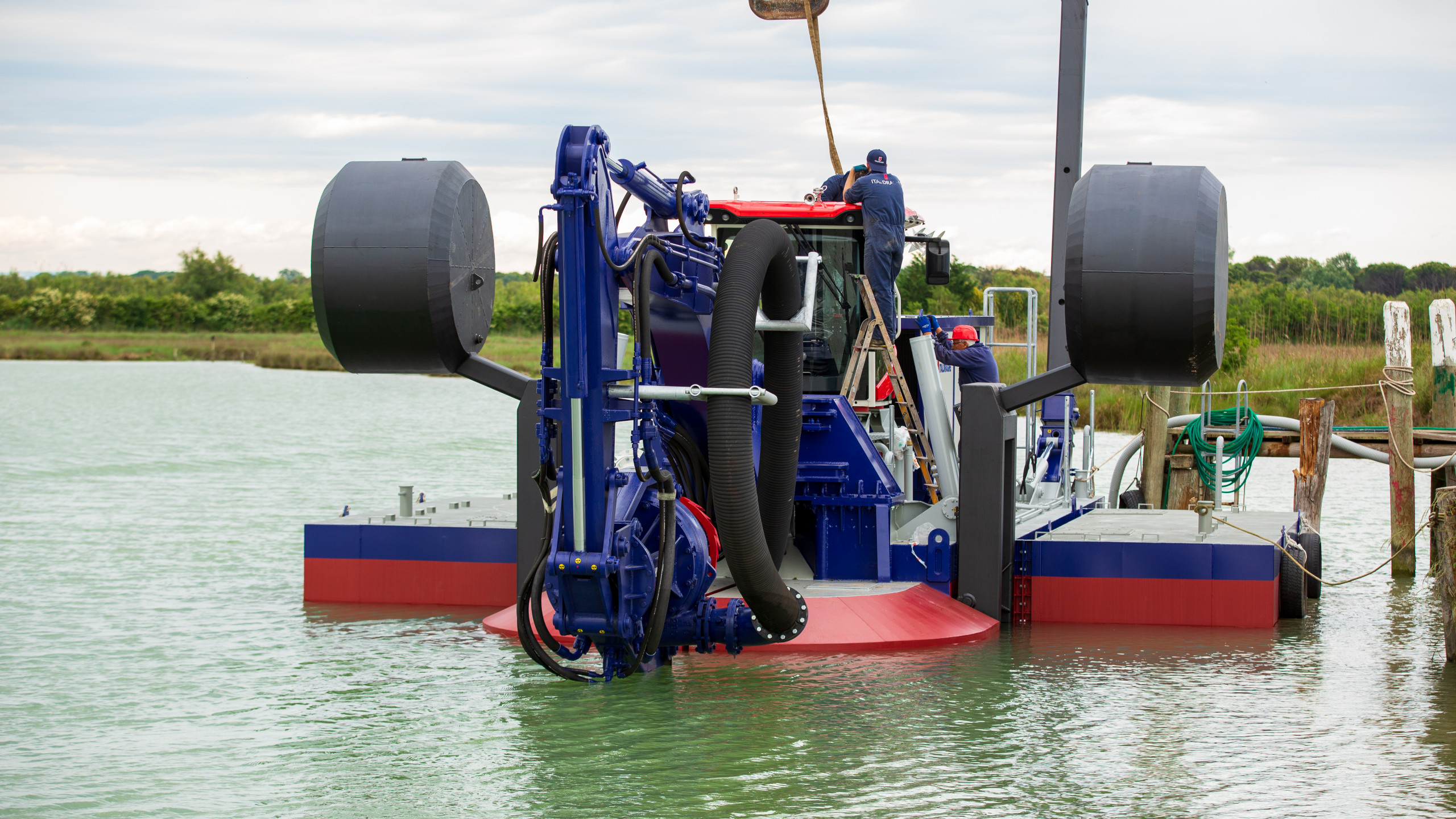

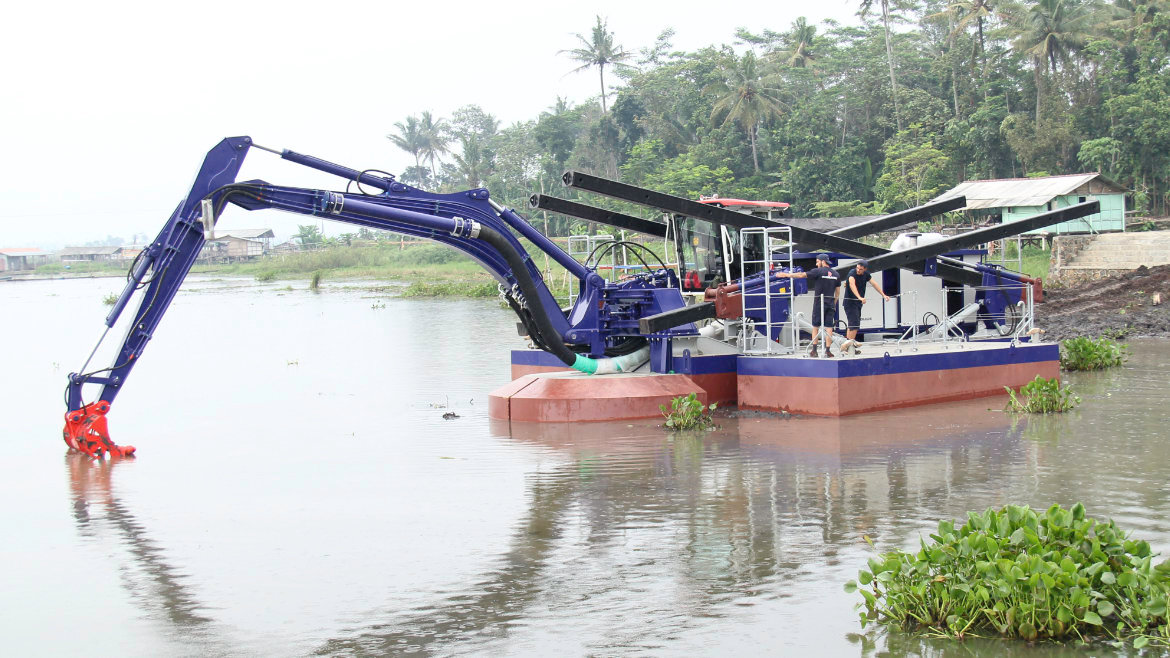

Italdraghe, based on the pluriannual experience of cutter suction dredger production, has developed the multifunctional amphibious dredger in order to perform all shallow water work from dry ground to water and marshy⁄muddy soils. This dredger is specifically designed for multi purposes work with only one machine – water work, for working from the land side, suction dredging, excavating, raking and pile-driving.
MAIN CHARACTERISTICS
Available custom made to satisfy customer requests
Easy and fast assembly and dismounting

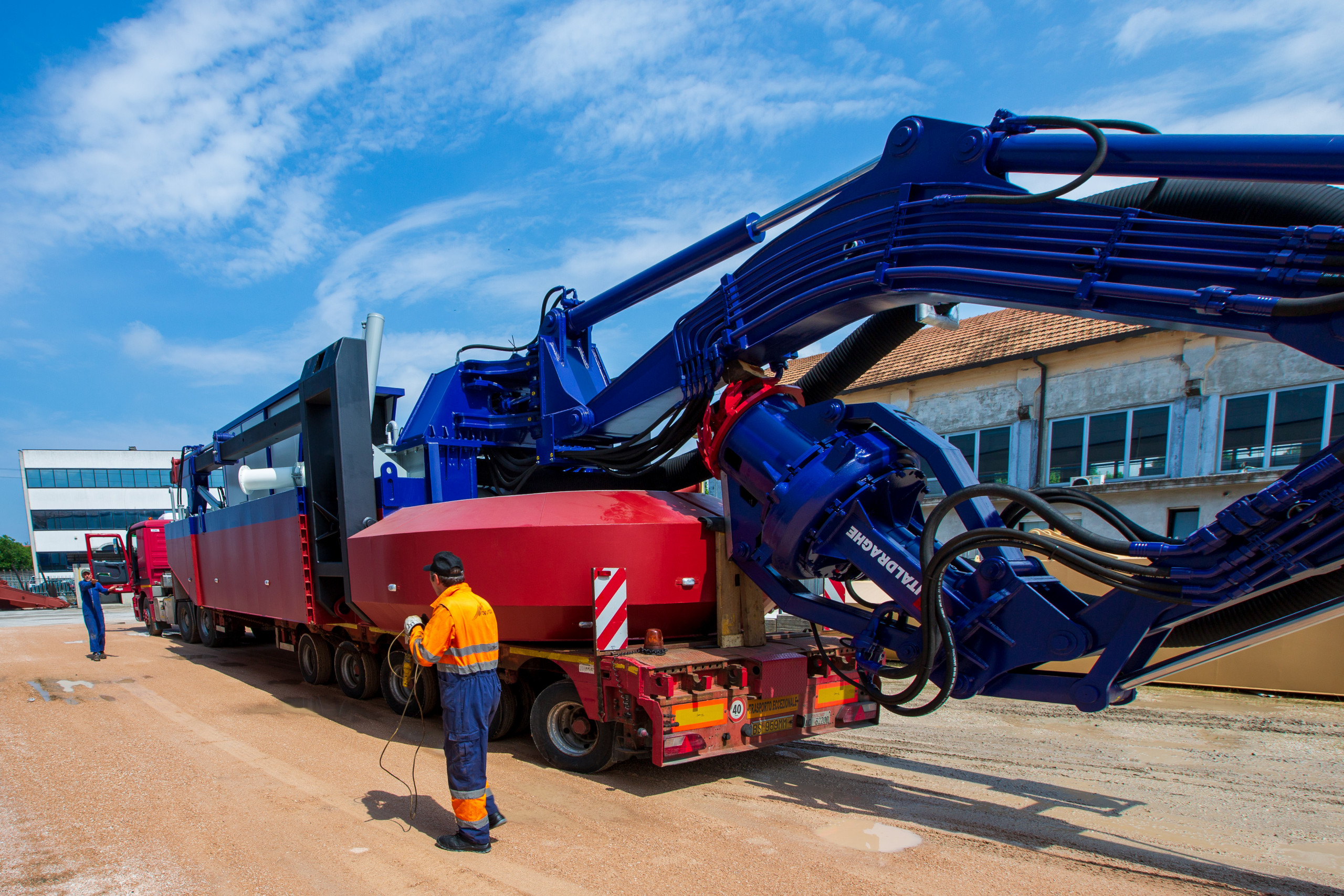

Dismountable and transportable by road, rail or sea
Self loading and unloading system from the means of transport
Multiple quickly interchangeable tools to be applied on – dredging head with submersible pump, cutter rake bucket, clamshell bucket, bucket
Lifetime technical support
Spare parts constantly available from stock
| Octopus 10 | Octopus 40 | Octopus 90 | ||
|---|---|---|---|---|
| Hull length at waterline (m) | Lunghezza al galleggiamento (m) | 11,50 | 15 | 18,50 |
| Transport maximum width (m) | Larghezza massima al trasporto (m) | 3,50 | 4 | 9 |
| Transport maximum height (m) | Altezza massima al trasporto (m) | 3,80 | 3,80 | 3,80 |
| Average draught (m) | Pescaggio medio (m) | 0,65 | 0,65 | 0,90 |
| Liftable stabilizers maximum depth at bow (m) | Massima profondità degli stabilizzatori mobili di prua (m) | 6 | 10 | 10,50 |
| Liftable stabilizers maximum depth at stern (m) | Massima profondità degli stabilizzatori mobili di poppa (m) | 7 | 10 | 10,50 |

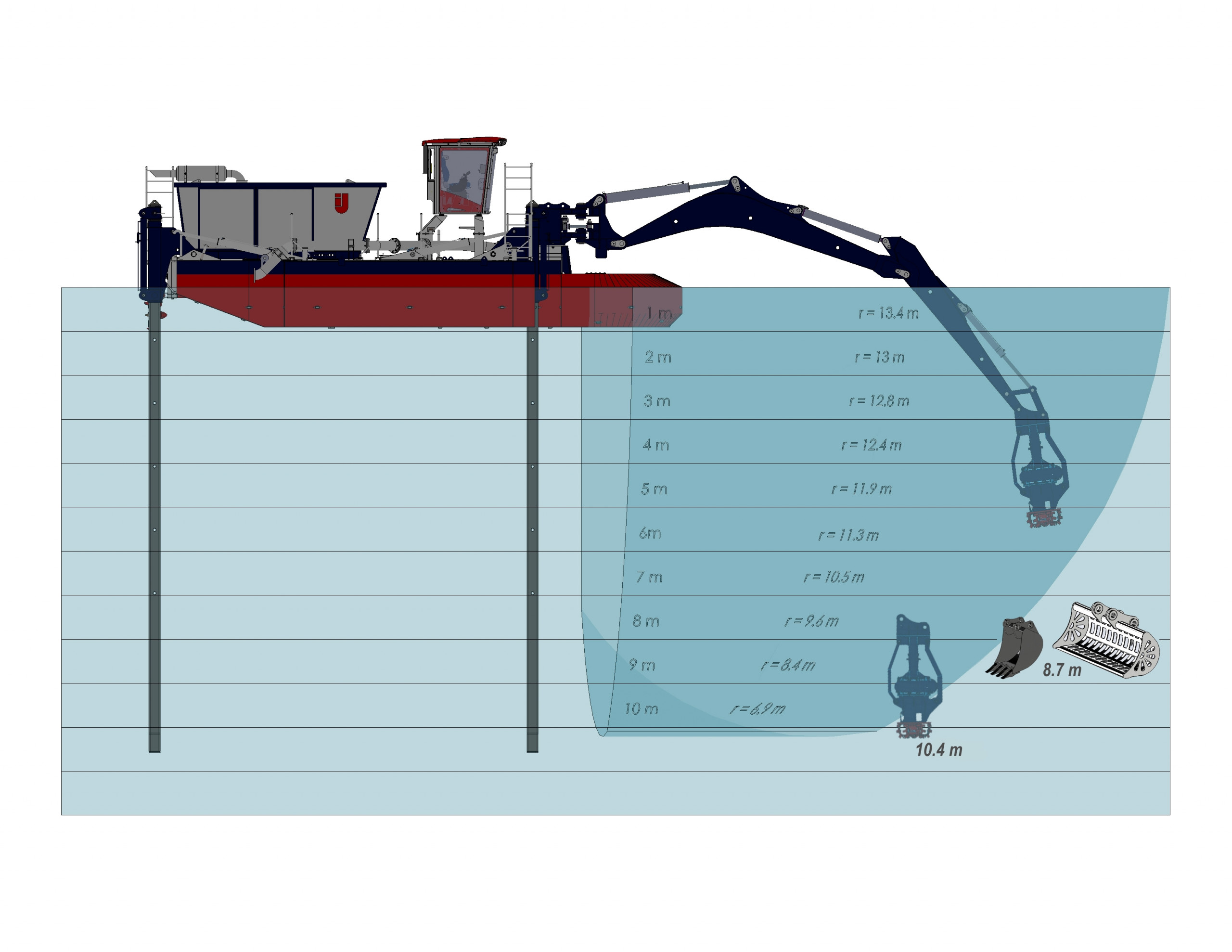

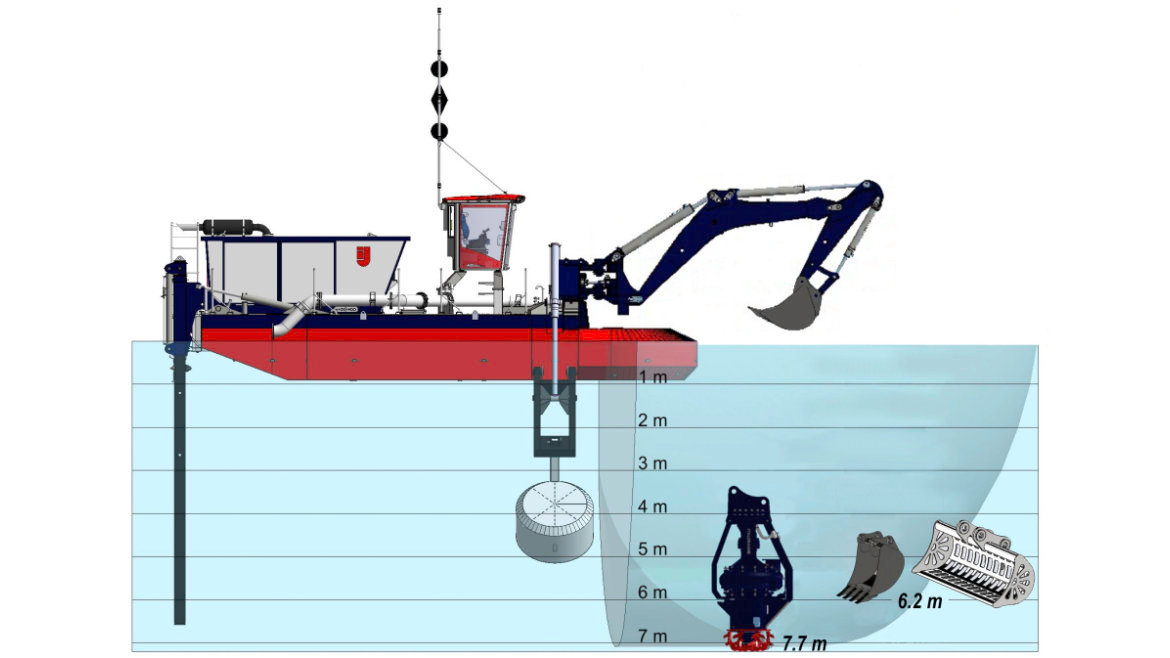

| Dredging depth (m) | Profondità di dragaggio (m) | 7,70 | 10,40 | 12 |
